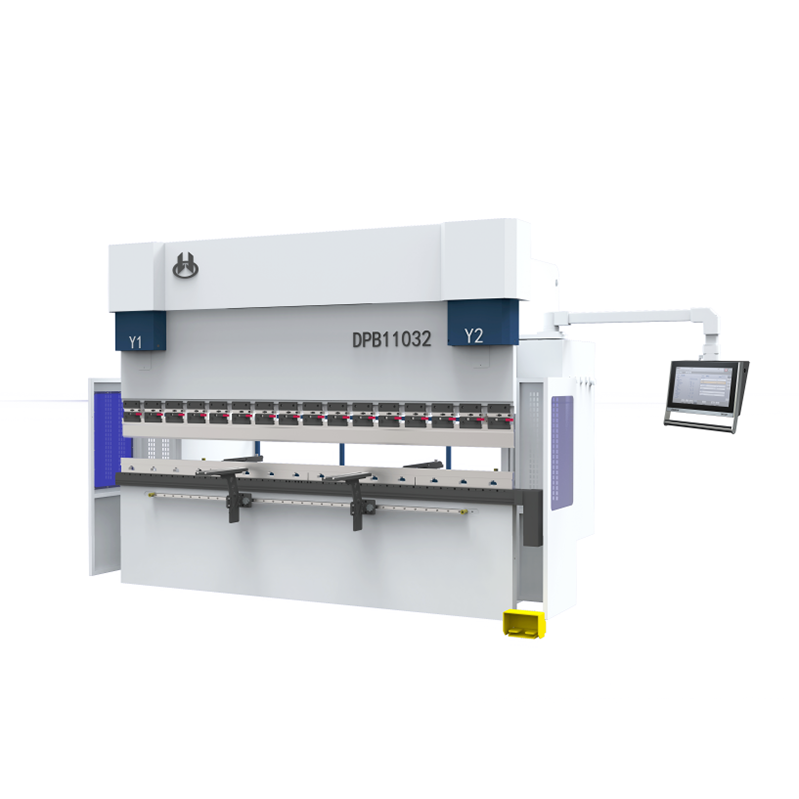

DPB Series Dual-Servo CNC Bending Machine

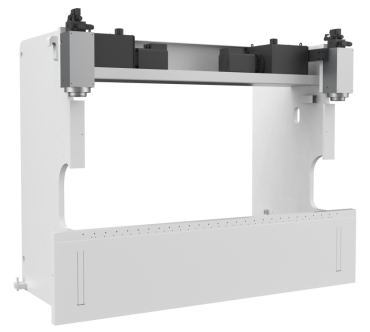

Built on an innovative integrated design of oil cylinder, oil pump, and oil tank, the DPB series features a total oil tank capacity of only 100L. Compared with traditional electro-hydraulic press brakes, it achieves an energy saving of approximately 15%-50%, reduces oil consumption by over 60%, and increases the slider operating speed by 10%.

Availability:

Quantity:



Inquire Add to Basket

Bending Machine Press Brake CNC Bending Machine

Product Description

Specification Parameter Table of DPB Series Double Servo CNC Press Brake

Category	Parameter	Unit	110T/3200	110T/4100	170T/3200	170T/4100	200T/3200	200T/4100
Basic Para- meters	Nominal Force	KN	1100	1100	1700	1700	2000	2000
	Bending Length	mm	3200	4100	3200	4100	3200	4100
	Column Distance	mm	2700	3600	2700	3600	2700	3600
	Closed Height	mm	580	580	580	580	580	580
	Throat Depth	mm	400	400	405	405	405	405
	Main Motor Power	Kw	2×7.5	2×7.5	2×7.5	2×7.5	2×9	2×9
	Oil Tank Capacity	L	100	100	100	100	100	100
Axis Strokes	Oil Cylinder Stroke	mm	200	200	200	200	200	200
	X-axis Stroke	mm	500	500	500	500	500	500
	R-axis Stroke	mm	200	200	200	200	200	200
	Z-axis Stroke	mm	2100	3000	2100	3000	2100	3000
Efficiency Values	Y-axis Fast Down Speed	mm/s	250	250	220	220	200	200
	Y-axis Working Speed	mm/s	20	20	18	18	16	16
	Y-axis Return Speed	mm/s	230	200	200	190	180	170
	X-axis Travel Speed	mm/s	400	400	400	400	400	400
	R-axis Travel Speed	mm/s	200	200	200	200	200	200
	Z-axis Travel Speed	mm/s	1600	1600	1600	1600	1600	1600
Precision Values	Y-axis Repeat Positioning Accuracy	mm	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01
	X-axis Repeat Positioning Accuracy	mm	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02
	R-axis Repeat Positioning Accuracy	mm	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02
	Z-axis Positioning Accuracy	mm	±0.1	±0.1	±0.1	±0.1	±0.1	±0.1
	V-axis Positioning Accuracy	mm	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02
Overall Dimensions	Length	mm	3720	4620	3780	4680	3830	4730
	Width	mm	1720	1720	1730	1730	1800	1800
	Height	mm	2550	2550	2600	2600	2670	2670
